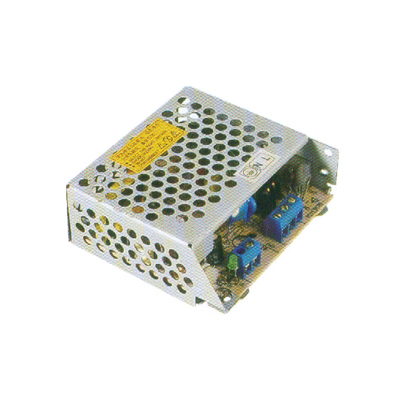

10W 单组输出开关稳压电源
- 产品详情
- 返回
| 交流输入电压范围 | |
| AC input voltage range | 170～264VAC 50/60Hz selectable |
| 直流可调范围 | 输出电压的±10% |
| DC adjustment range | ±10% of rated output voltage |
| 过载保护 | 105%～160%过电流限制,垂下型,自动复位. |
| Over load up protection | 105%～160% fold back current limiting auto-recovery |
| 起动,上升,保持时间 | |
| Setup, rise, hold up time | 100ms, at full load and 230VAC |
| 耐压性 | |
| Withstand voltage | I/P-O/P:3KVAC, I/P-FG:2KVAC for 1 minute |
| 工作温度,湿度 | |
| Working temperature | 0～50℃@100%, -10℃@80%, 60℃@60% load |
| 安全标准 | 满足EN60650标准 |
| Safety standards | design refer to En609501 |
| 单组输出 | S-10-5 5V,2A | S-10-12 12V,0.83A | S-10-24 24V,0.4V |
| 二组输出 | D-10A +5V,+12 | D-10B +5V,+15V | |
| 三组输出 | T-10A +5V,+12V,-12V | T-10B +5V,+15V,-15V |
